Project summary

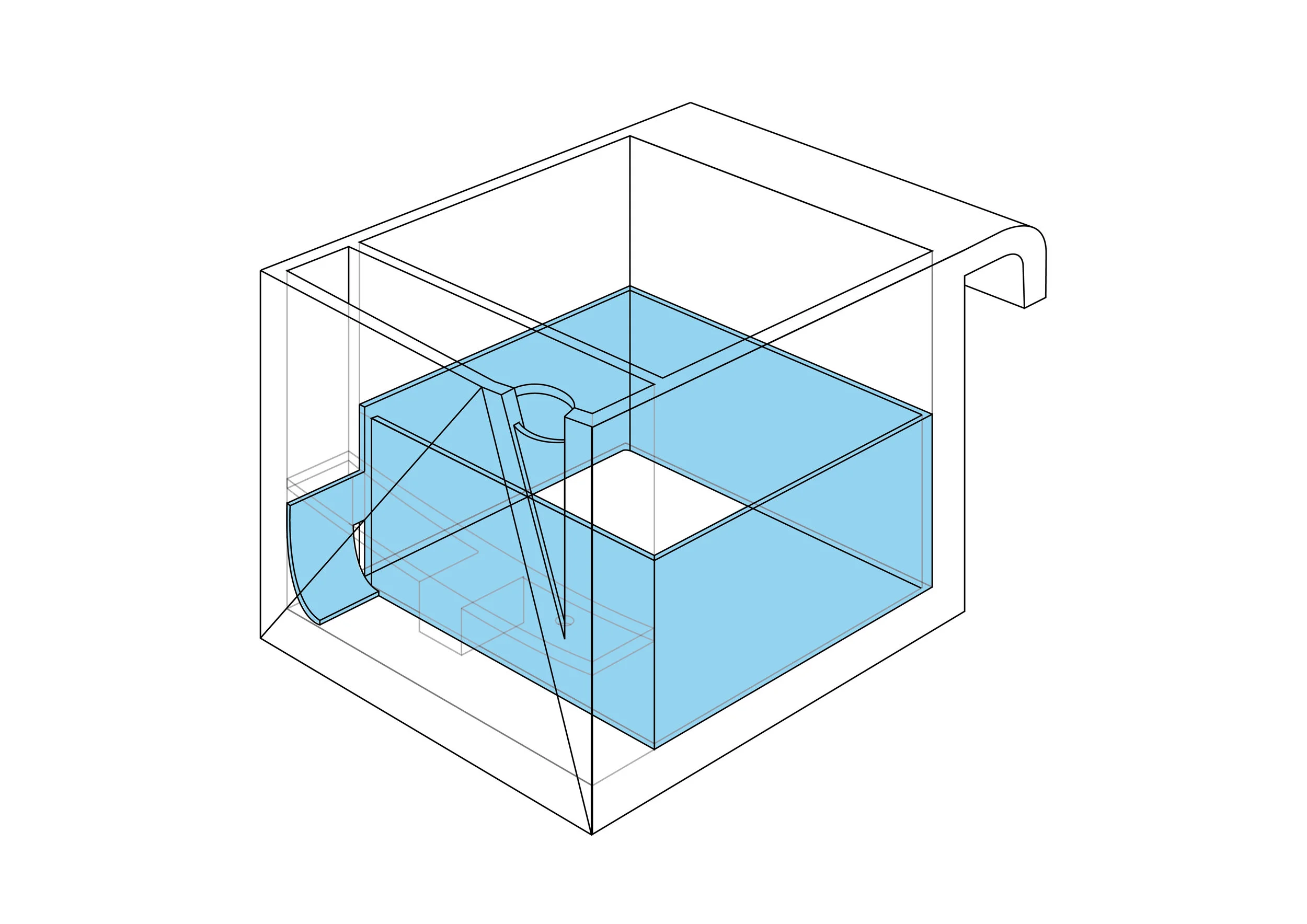

Container system
Reservoir
Reservoir holds approximately 1 week of water (1"-3" dependent on container size)

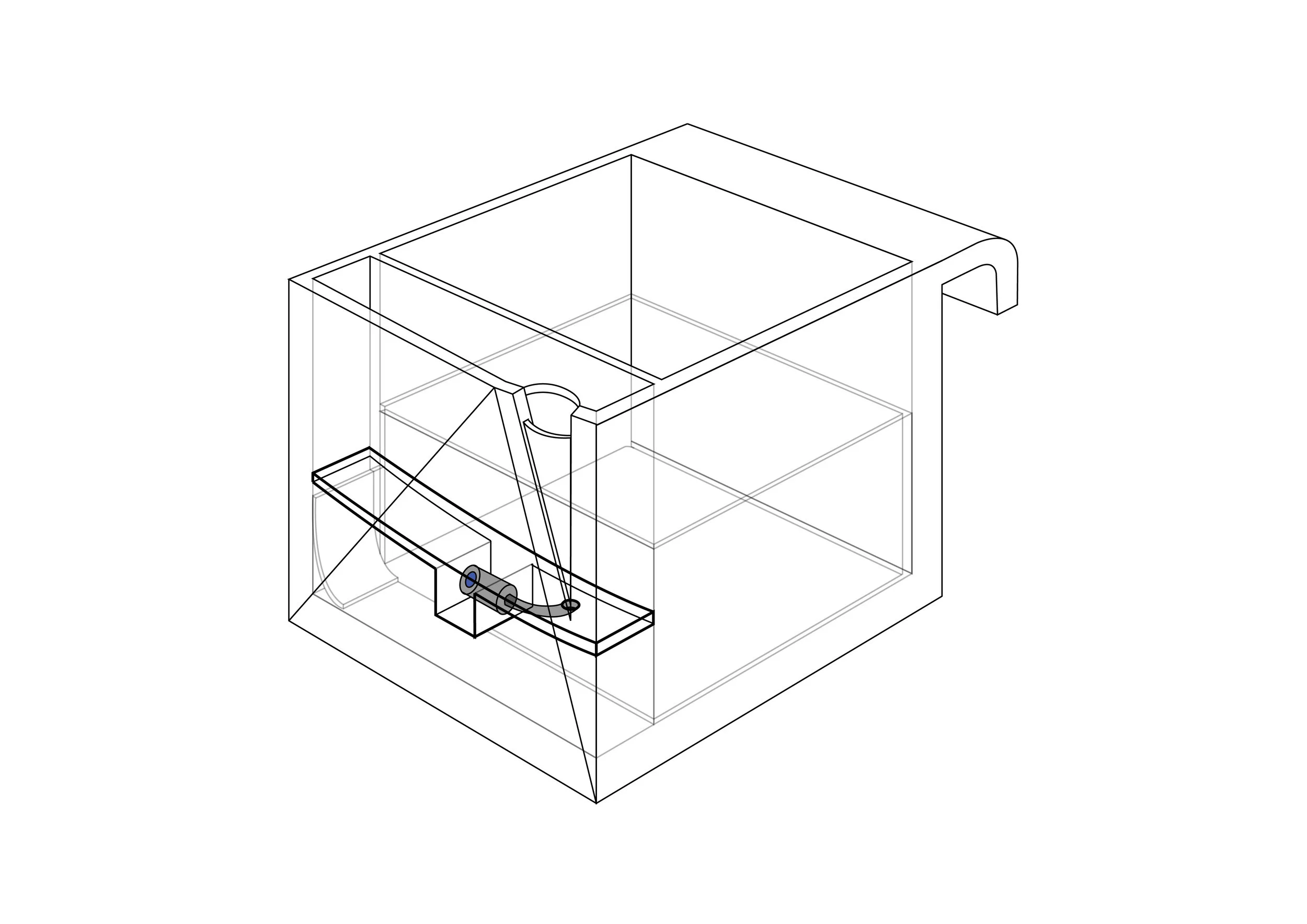

Valve
Smart valve uses a chemical polymer to control water flow to plant. This ensures a wet and dry cycle to improve yield.
Valve designed by SmartTech who collaborated with this project.
Flood chamber
Flood chamber connects to root zone of the plants via capillary matting.
Capillary matting
Roots wick up water from capillary matting present throughout container.
Geotextile membrane
Geotextile membrane allows any excess water to drain through container without loss of growing media.
Reservoir cap and viewing window
Reservoir cap prevents clogging of system by stopping any debris accummulating in reservoir. Viewing window provides user with easy way monitor water system.
Prototyping
In collaboration with Smart Tech, Glasgow.
